Full-color Outdoor LED Pixel Grid Screen , Waterproof Intelligent Flexible Transparent LED Grid Screen

Brand Name : XQD

Model Number : XQD-P31.25-H2020-4L

Certification : CE, RoHS, FCC

Place of Origin : Guangdong, China

MOQ : 10Square

Price : $458.00/square meters 1-49 square meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/Day

Delivery Time : 10 work days

Packaging Details : XQD PACKING/customized

Application : Indoor, Outdoor

Type : LED

Color : FULL COLOR

Panel Size : 20mm, 20mm

Supplier Type : Original manufacturer, ODM, Agency, Retailer, Other, OEM, Other

Media Available : datasheet, Photo, EDA/CAD Models, Other, Other

use : advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment

Function : SDK

Specification : Stretch bar, Digital Poster, Touch Screen, Video Wall, Kiosk

Touch Screen Type : Capacitive, Resistive, Touchscreen, Infrared

Resolution : 3*16bit

Product name : Led Video Display Panel

Usage : Outdoor Adverting Display

Warranty : 3 Years

Certificate : CE ROHS FCC

Material : PVC

Life span : 50000hours

Installation : Easy

Contact Now

LED pixel grid screen full-color outdoor LED waterproof intelligent flexible transparent grid screen

Product features:

The lifespan of LED grid screens is usually 6 to 8 years. Although the theoretical lifespan of LED chips can reach 100000 hours, which means they can work continuously 24 hours a day for more than 11 years, there is a significant difference between the actual market situation and the theoretical data. At present, the average lifespan of LED displays on the market is about 6 to 8 years. Large LED screens that can last for more than 10 years are rare, especially those used in outdoor environments, where their lifespan is often shorter

The main factors affecting the lifespan of LED grid screens include:
Raw material quality: High quality chips and LED chips are the foundation for ensuring stable display screens. High quality light-emitting chips and driver ICs can improve the brightness, grayscale, contrast, and stability of display screens

Heat dissipation effect: A good heat dissipation system can extend the lifespan of the lamp beads. If the heat cannot be dissipated in a timely and effective manner, the high temperature inside the lamp bead can cause light decay or even damage

Environmental factors: Extreme high or low temperatures, high humidity environments, as well as dust and pollutants, can all affect the lifespan of display screens. The suitable working temperature range is -20 ℃ to 60 ℃. High humidity environments require moisture-proof treatment, and dust needs to be cleaned regularly
In order to extend the service life of LED grid screens, it is recommended to take the following measures:
Choose high-quality raw materials: Ensure reliable quality of key components such as LED chips, driver ICs, and power supplies.
Optimize heat dissipation design: Ensure that the display screen has a good heat dissipation system to avoid damage to the LED chips due to high temperatures.
Regular maintenance: Regularly clean the dust on the surface of the display screen to prevent dust from entering the interior of the display screen and affecting heat dissipation and transparency.

Product Description

Full-color Outdoor LED Pixel Grid Screen , Waterproof Intelligent Flexible Transparent LED Grid Screen

Product Model	XQD-P40-H2020-FX
Cover Material	PC
Power Rating	0.72W
Voltage	DC12V
Control Protocol	DMX512
LED Color	RGB
Waterproof grade	Ip65

Product single weight	About 0.9g	Shell flame retardant	V-0
product size	20.19mm*20.19.mm	Anti-UV grade	4
Maximum number of connections	200 PCS / chain	Salt Spray Test	Salt spray resistance
Center spacing	Minimum 4CM	Electrical safety grade	class Ⅲ
Brightness	6-7cd	shock resistance	IK10
Average lifespan	50,000 h	security certificate	CE FCC RoHS
accessories	Aluminum trough, wire buckle	Operating temperature	-40℃-55℃
Wire core	2x0.75mm²+2x0.35mm²	Luminescence Angle	120°
Cable material	PVC	Color resolution	3*16bit
Lamp bead package	SMD3030*4LED	Pixel point light flux	30.6LM

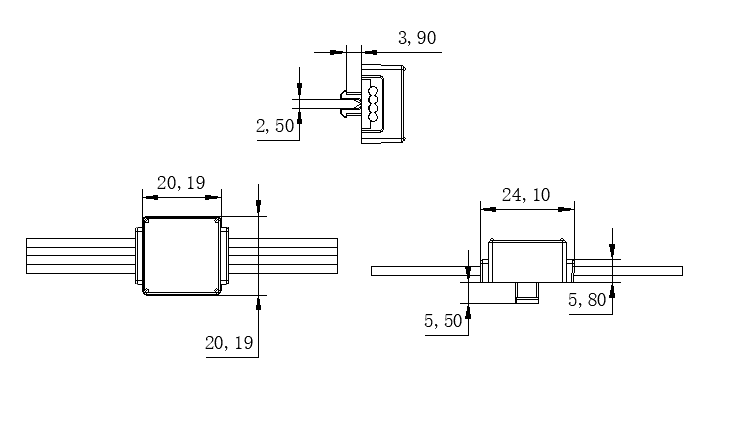

Product size

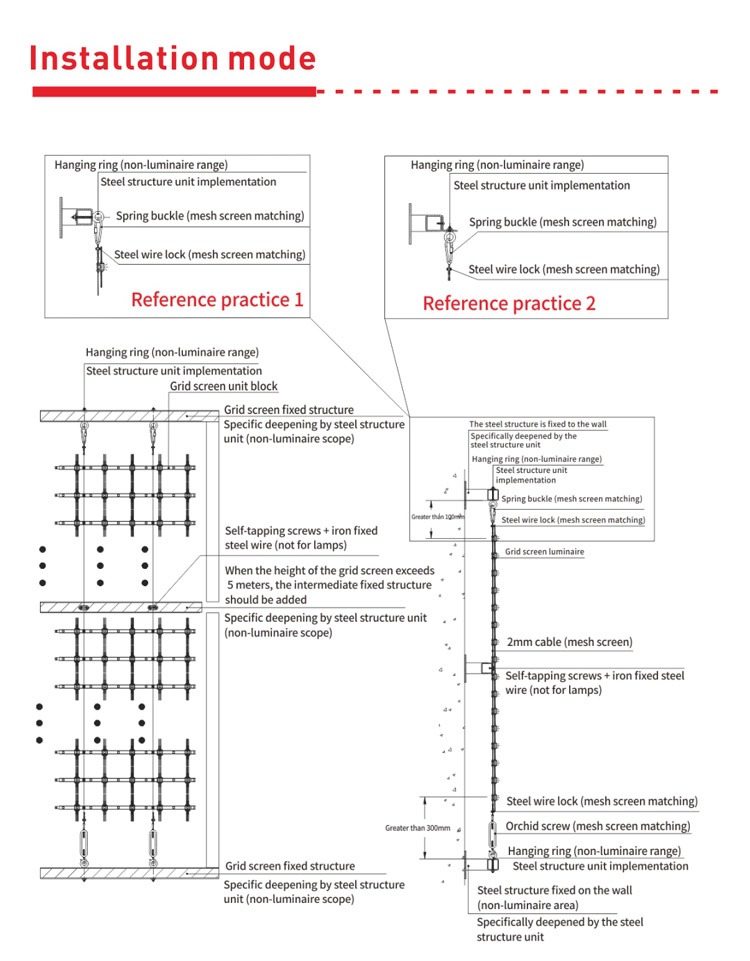

Installation accessories and control mode

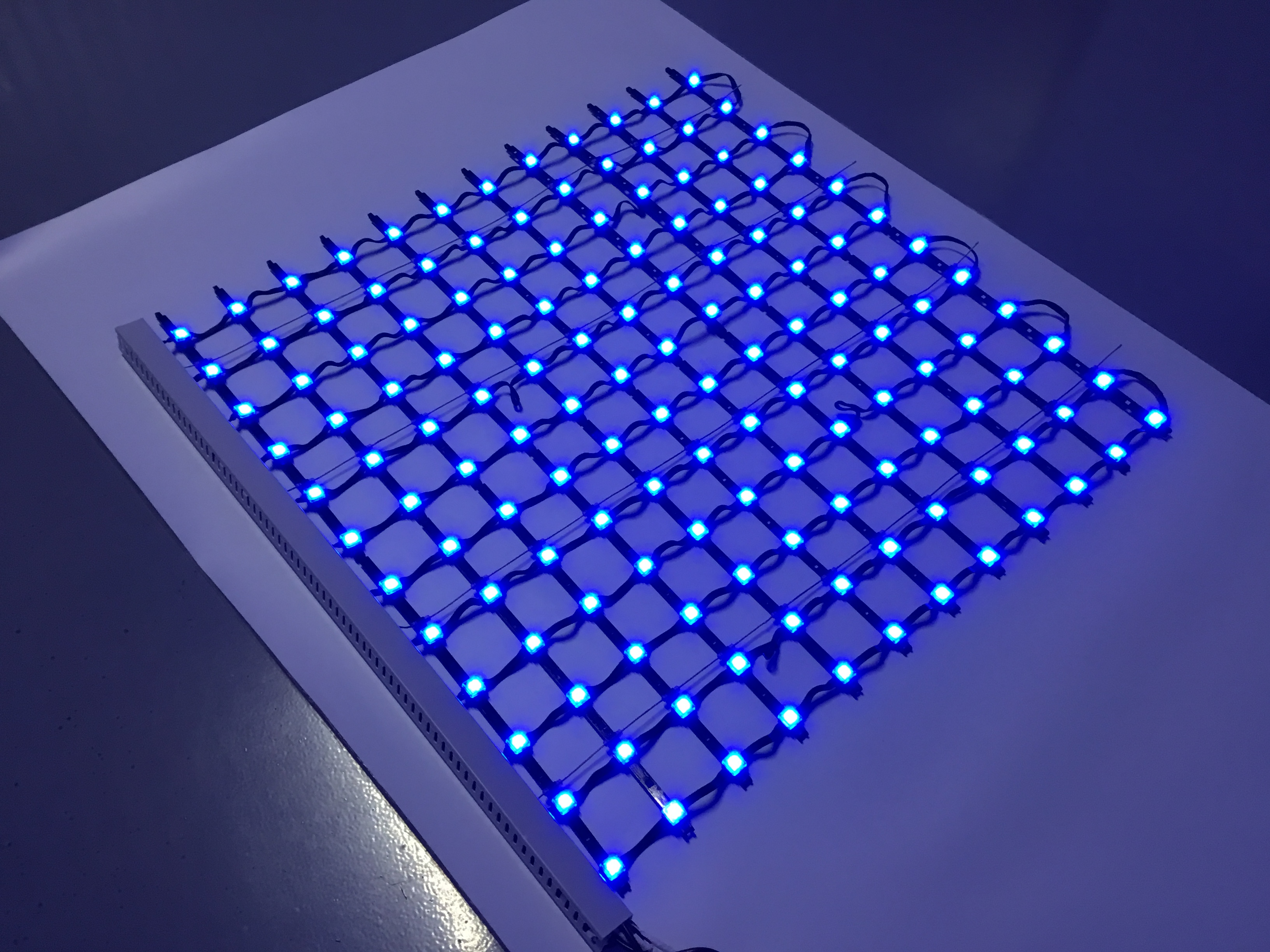

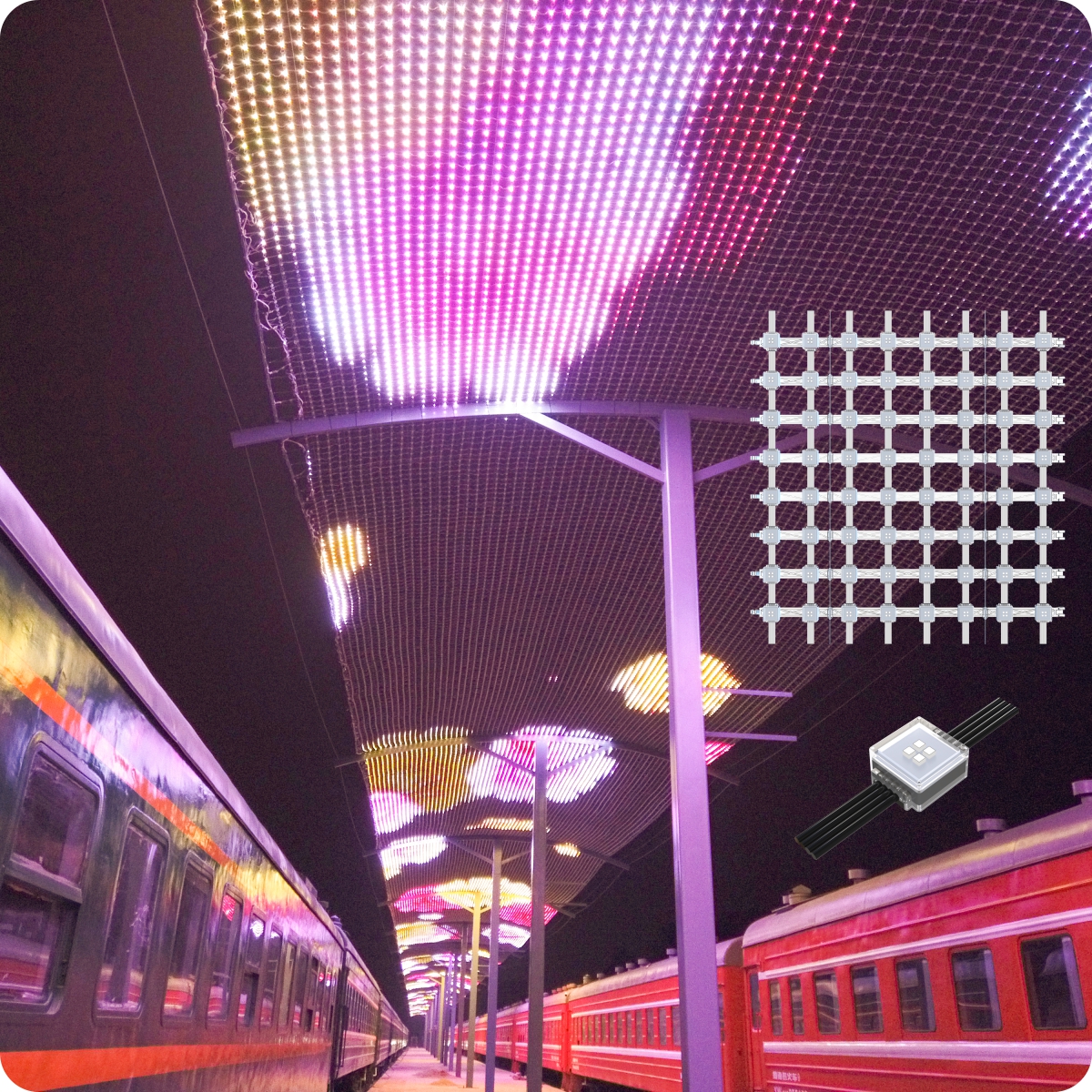

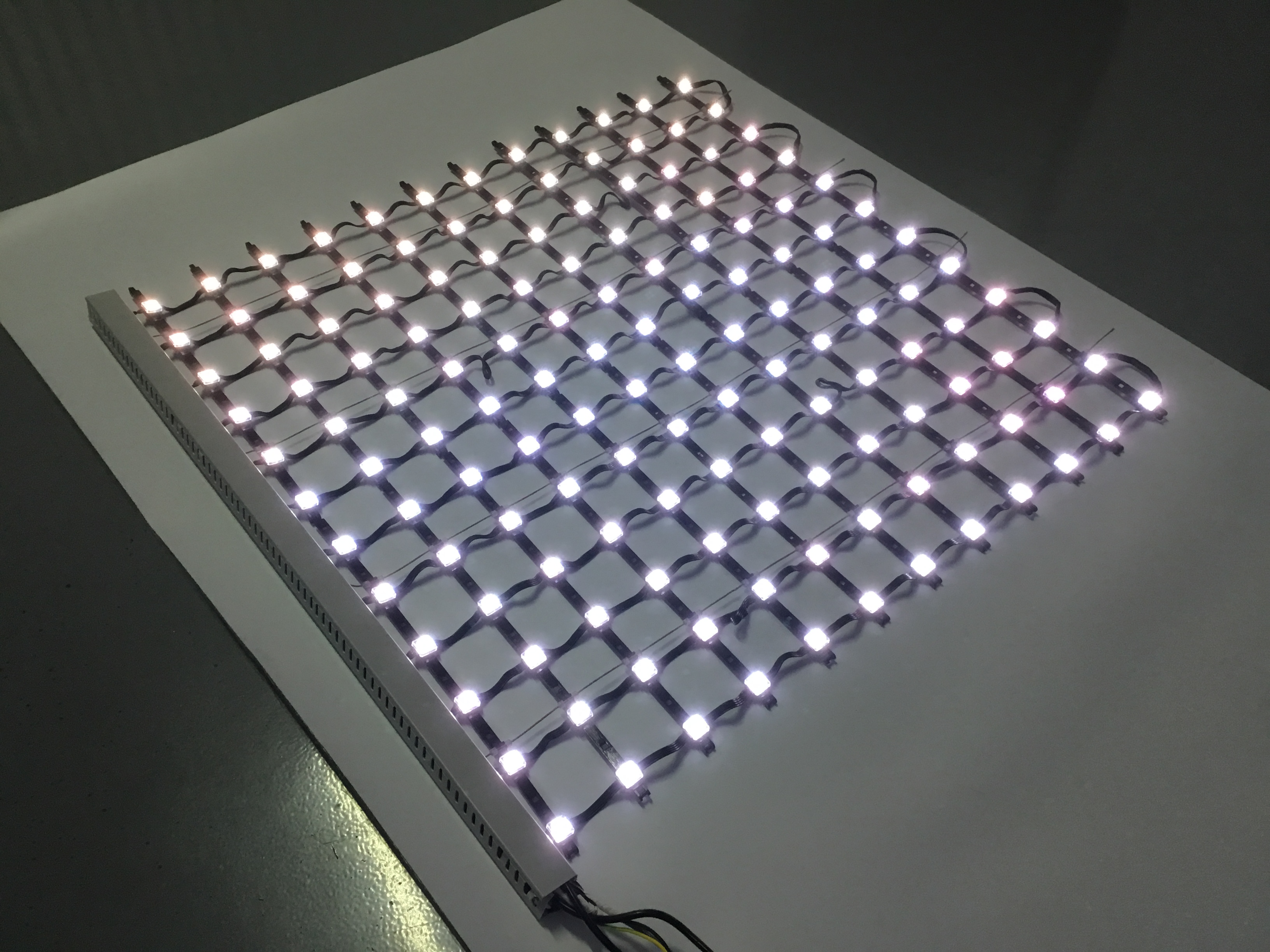

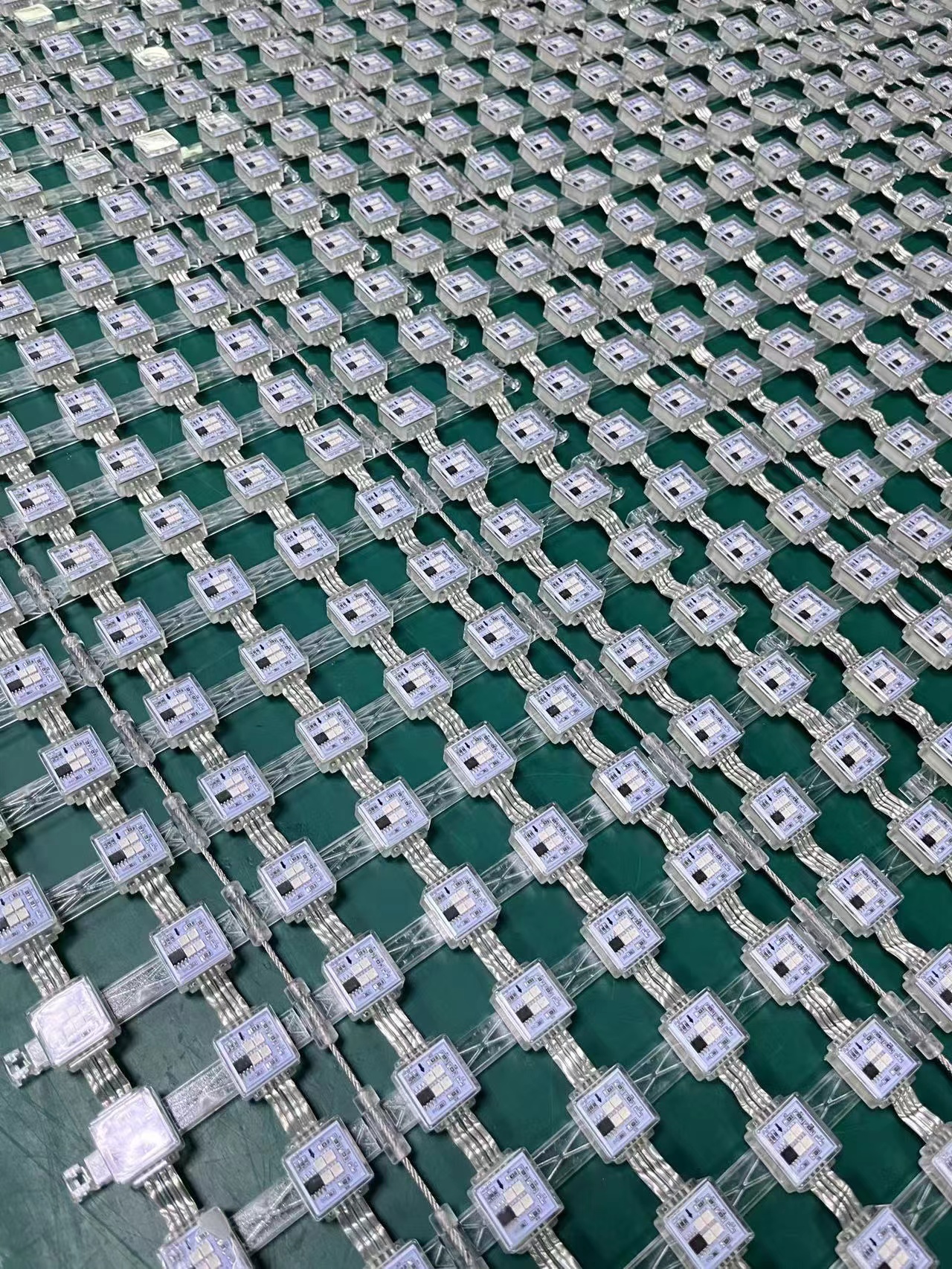

Product Presentation

Company Introduction

Shenzhen Xinqidan Optoelectronics Co., Ltd. was established in February 2010, is a professional LED optoelectronics products,production, research and development, sales and related services in one of the LED high-tech enterprises. Currently has more than 200 employees, plant covers an area of 6000 square meters.

Certificate

Packing&Shipping

Product Tags:

Full-color Outdoor LED Pixel Grid Screen , Waterproof Intelligent Flexible Transparent LED Grid Screen Images
